Pop-up Transfer Sorter
    Publish time 2025-03-12 14:44

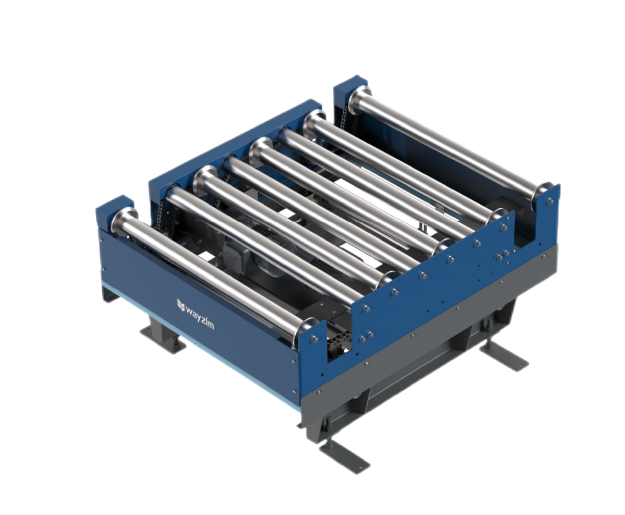

Pop-up Transfer Sorter

The Pop-up Transfer Sorter is a conveyor commonly used in automated logistics systems. The pop-up motion operates in a cam-linkage mechanism, and the conveying motion operates in a roller and chain mechanism. It uses pallets and totes as carriers to convey various materials and is widely used in automated logistics systems.



Technical   parameters

Pallet   Pop-up Sorter

Tote   Pop-up Sorter

Length   (mm)

can be   customized

can be   customized

Width   (mm)

can be   customized

can be   customized

Pop-up   stroke (mm)

80

20

Pop-up   interval (mm)

≤5

≤5

Conveying   speed (m/min)

12-18

60

Load   (kg)

50-2000

50

Control   mode

variable   frequency motor

Motorized   roller and motor driven



Advantage:

l  High efficiency & multiple application

l  Stable right-angle reverse conveying of pallets

l  Energy saving and consumption reduction
