Telescopic Loading Belt Conveyor-TC
    Publish time 2025-03-12 15:08

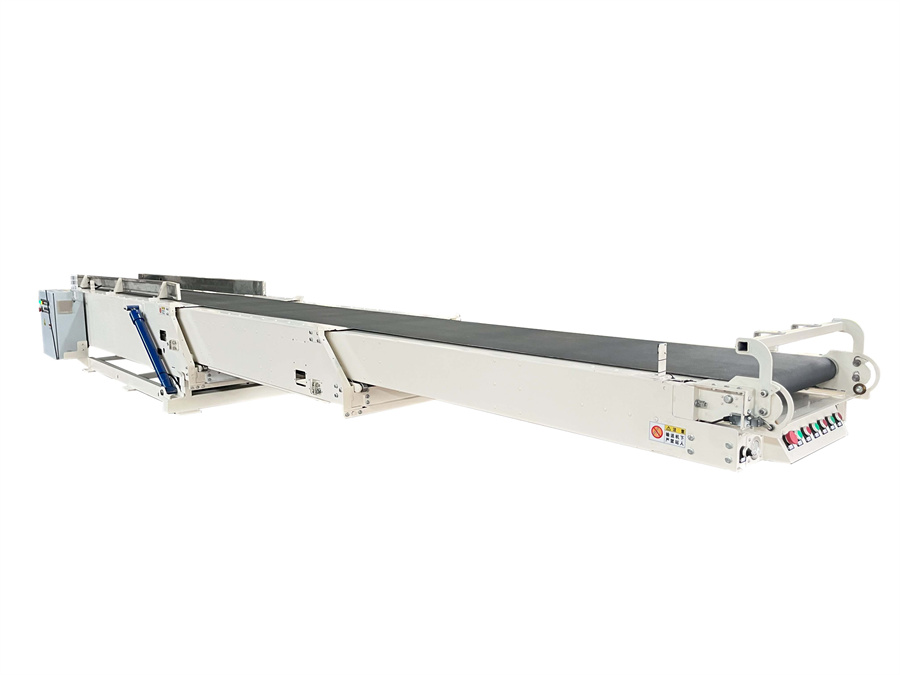

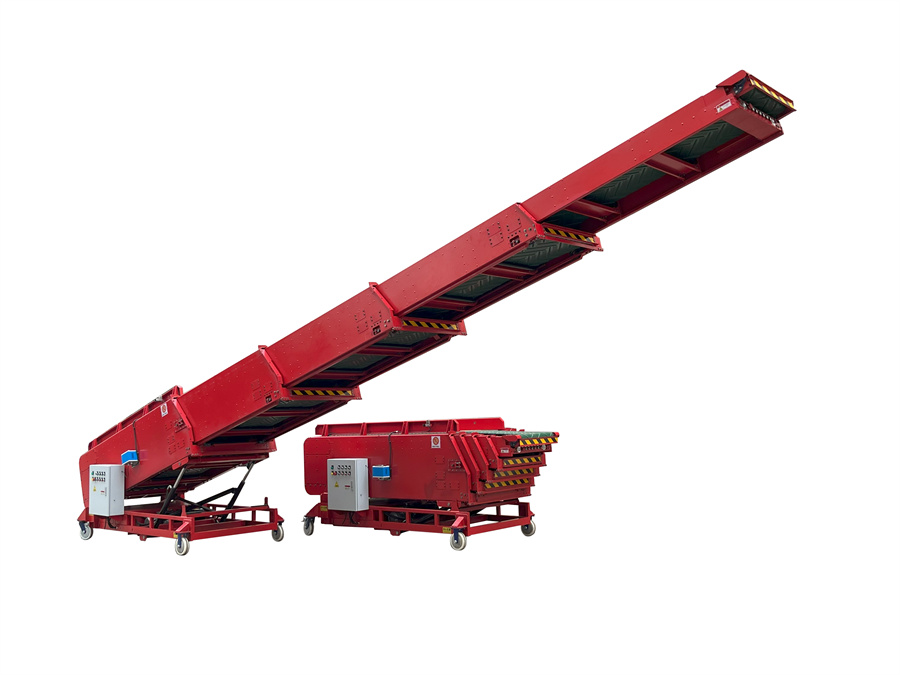

Telescopic Loading Belt Conveyor-TC

Telescopic Belt Loading Conveyor-TC series



The telescopic loading belt conveyor TC series is designed for fast and efficient loading of bagged and boxed goods, suitable for a variety of vehicle types such as containers, trucks, trailers, etc. It is an ideal choice for logistics centers with loading platform, finished product outbound, raw material inbound, airport warehouses and other scenarios.


Main features:

Efficient loading: Each vehicle can be loaded in only 30-40 minutes, significantly improving loading efficiency.

Strong load capacity: The maximum load-bearing capacity can reach 750KG, which can easily cope with large-volume cargo loading.

Widely applicable: Suitable for loose bags and boxes of different sizes to meet diverse needs.

Flexible and convenient operation: Provide a variety of specifications to adapt to different vehicle types; simple operation and easy to use.

Application Industry: Suitable for logistics centers, finished product outbound, raw material inbound, airport warehouses, etc.

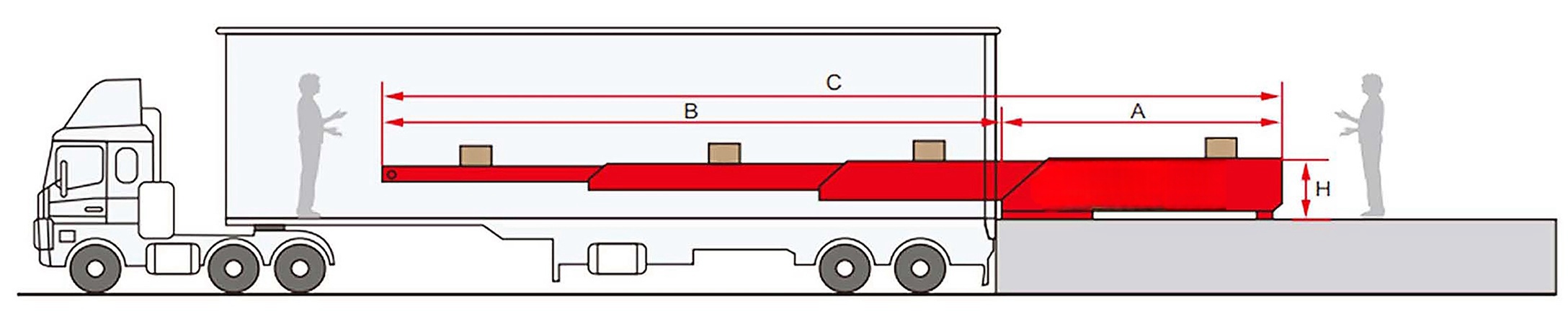

Specification

Section

Base length

A(m)

Extension length B(m)

Total length C(m)

Height H(mm)



Belt width

(mm)



Mounting form

TC-M2-3/2(3*2)

2

3.7

2.2

5.9

≥700









600/800







Fixed   installation/

Mobile   installation

TC-M2-4/3(4*2)

4.7

3.2

7.9

TC-M2-5/4(5*2)

5.7

4.2

9.9

TC-M2-6/5(6*2)

6.7

5.2

11.9

TC-M3-3/4(3*3)

3

3.8

4.2

8.0

≥750

TC-M3-4/6(4*3)

4.8

6.2

11.0

TC-M3-5/8(5*3)

5.8

8.2

14.0

TC-M3-6/10(6*3)

6.8

10.2

17.0

TC-M4-5/12(5*4)

4

5.9

12.1

18.0

≥800

TC-M4-6/15(6*4)

6.9

14.1

21.0

TC-M4-3/5(2*4)

4

3.0

5.0

8.0

≥900

TC-M5-3/7(2*5)

5

3.0

6.7

9.7

≥900



*With loading platform
